2ton per hour capacity flash dryer for cassava starch

The flash dryer is one of the key equipment for cassava starch production. And high quality starch drying machine can ensure high quality cassava starch and stable moisture content.The article will give you a brief of a 2ton per hour capacity flash dryer machine designed by Henan Jinrui company.

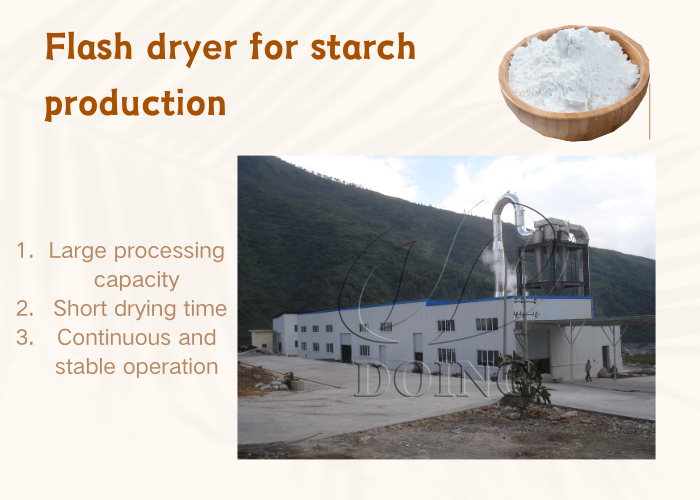

Flash dryer is an efficient drying equipment for powdered materials, which is widely usedfor drying various kinds of starch(like cassava, potato, and sweet potato). It has the characteristics of large processing capacity, short drying time, continuous and stable operation, controllable, small investment, and convenient operation.

Flash dryer for cassava starch production

Flash dryer mainly consists of screw feeders, drying tubes, cyclones, heat exchangers, fans, and exhaust tubes.

Firstly wet cassava starch power will be sentin to a drying tube through a screw feeder. Then wet starch will mix with hot air inside and complete the drying process. The drying speed isvery fast and it just needs several seconds to finish drying. Finally, dried starch will be discharged by cyclones.To ensure the stable moisture content of the final product, an interlocking and automatic control system is equipped. By monitoring the temperature of inlet air and outlet air, the screw feeder speed will be automatically controlled. If the outlet temperature is high, the screw feeder willbe sped up, otherwise, the screw feeder willbe slowed down, guaranteeing final starch has specific moisture content.

Large cassava starch drying machine

The whole drying system adopts negative pressure,so that pressure inside is lower than air temperature, preventing starch from leaking out to the air and ensuring high starch yield and a working environment clean.

As regards the material of the flash dryer, Henan Jinrui company ensures that all parts that may contact with starch are made of food-grade stainless steel 304, meeting standards for food production.

As for the heating source for the drying system, clients can choose to use a hot air stove or steam boiler. Fuel could be diesel, gas, wood, coal, biomass, etc.

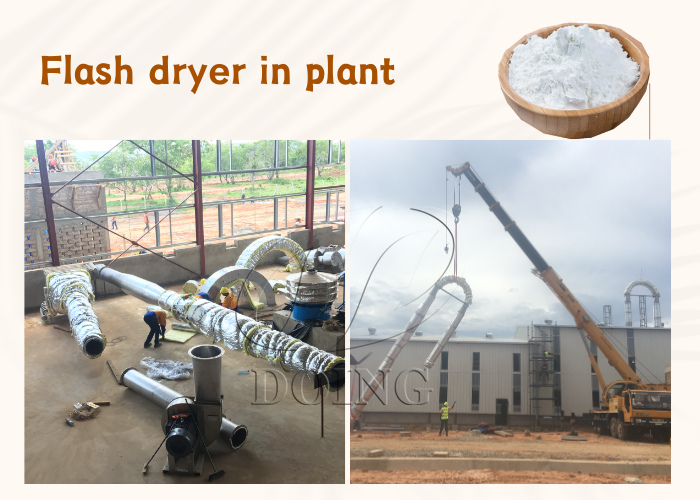

Since that flash dryer is very big and high, so it will be shipped as semi-finished and need to be connected and assembled at the project site. Besides, thermal insulation material and the aluminum sheet will cover the outside drying tube, preventing loss of heat energy.

We have different capacities for flash dryer, like 500kg/h, 1t/h, 2t/h, 3t/h, 5t/h, 13t/h, etc. We can also design a flash dryer according to the client’s capacity requirement. If you need a flash dryer for your cassava starch production or other starch production,feel free tocontact usanytime.
