2026-04-08If you are planning to set up a fully automated garri processing line, the first question you need to answer is: how much space does a fully automated garri processing line actually require? Getting this estimate right is critical. Too little space will disrupt your workflow, create safety risks, and limit future expansion. Too much space, on the other hand, means unnecessary land and construction costs.
As a professional cassava processing equipment manufacturer, Henan Jinrui provides clear factory layout & setup guidance based on our real projects experience in the Nigerian market — covering space requirements, functional zoning, and layout principles. In general, a fully automated garri processing line requires approximately 300 to 1,000 square meters of indoor workshop space.

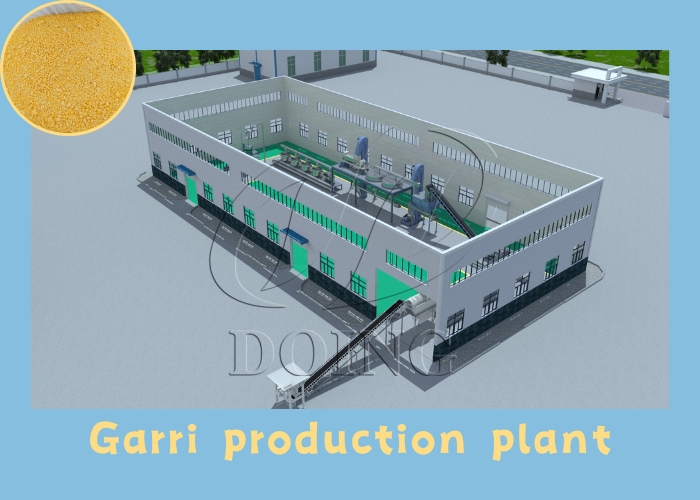

Garri processing plant
To answer the question “how much space for a fully automated garri processing line” , the key factor is your daily fresh cassava input — in other words, your target production capacity. The table below shows recommended indoor workshop areas for fully automated garri lines with different capacity, covering washing, peeling, grating, dewatering, frying, sieving, and packaging. In addition, you need to reserve outdoor space for truck turning, a generator house, raw cassava stacking, and waste collection. Therefore, total land area should be 20–30% larger than the indoor workshop area.
| Daily Cassava Input | Indoor Workshop Area | Total Land Area |
| 5–10 TPD (small) | 300–400 m² | 400–500 m² |
| 15–30 TPD (medium) | 500–700 m² | 650–900 m² |
| 40–50 TPD (large) | 800–1,000 m² | 1,000–1,300 m² |
All figures assume a minimum ceiling height of 8 meters — which is necessary for conveyor installation. If your workshop has many pillars or an irregular shape, Henan Jinrui recommend adding extra space when planning. As you can see, how much space for a fully automated garri processing line depends directly on your target capacity. You can use this table as a reference when making your initial factory layout and setup guide plan.

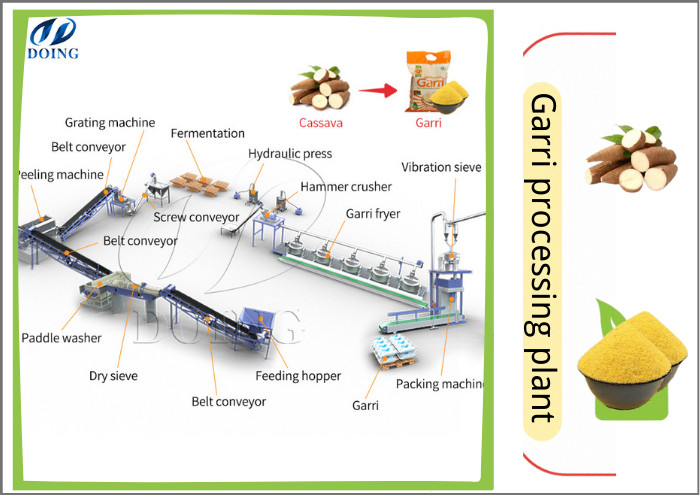

Garri processing factory
(Recommended Reading: How Much is Garri Processing Machine in Nigeria? 2026 Price Analysis)
A professional garri processing plant has four main functional zones. Understanding these zones is essential when you are trying to determine how much space for a fully automated garri processing line. Below, this complete factory layout & setup guide explains each zone:
Raw Material Zone (15–20% of indoor area) – Cassava reception, washing, and peeling. Needs water supply and drainage. Area: 50–150 m². This is where your fully automated garri processing line begins.
Processing Core (40–50%) – Grating, dewatering, frying, and sieving. Needs ventilation and heat resistance. Area: 150–500 m². This is the heart of your factory layout.
Packaging & Storage (20–25%) – Clean packaging room plus finished garri warehouse. Must be dry and dust-proof. Area: 100–250 m².
Auxiliary Areas (10–15%) – Control room, maintenance workshop, office, and restrooms. Area: 30–100 m².
When planning how much space for a fully automated garri processing line, remember that these zones must flow logically. A well-designed garri processing factory layout puts the raw material zone at one end and packaging at the opposite end — exactly as this setup guide recommends.

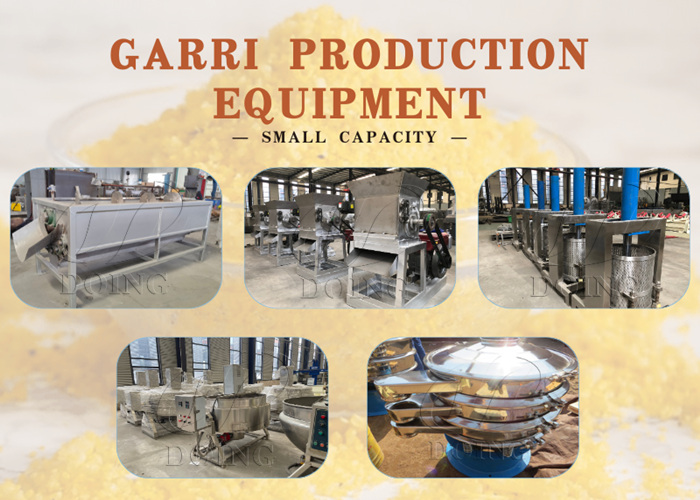

Garri processing machinery
To make the best use of how much space for a fully automated garri processing line, follow these principles for an efficient factory layout:
Linear flow – Cassava in one end, packaged garri out the other. No backtracking.
Aisle width – Main path ≥3.5m, service aisles ≥2.5m (for forklifts).
Ceiling height – Minimum 8 meters (critical for a fully automated garri processing line).
Safety – Dust explosion prevention, fire exits, non-slip floors.
These principles are part of any complete factory layout & setup guide. They help you maximize the space you have — no matter how much space for a fully automated garri processing line you finally decide on.
Every garri processing factory site is different. Machine configuration also affects footprint (e.g., paddle washer vs. integrated washer-peeler). A generic number like "500 m²" is only a starting point. The best way to answer how much space for a fully automated garri processing line is to work with an experienced supplier for a custom layout drawing.
At Henan Jinrui, we have helped dozens of garri producers in Nigeria move from manual to fully automated garri lines. We provide free preliminary layouts, 2D/3D drawings, and on-site guidance. Ready to plan your garri factory layout? Contact us today to get your personalized layout plan — we reply within 24 hours.
