The features of hydrocyclone starch separator

The working process of hydrocyclone starch separator is a physical separation process that separates fiber, protein and cell sap out of starch milk. In the starch production process, according to the characteristics of insoluble in cold water and greater specific gravity than water, starch will be separated by using a large quantity of water. The use of hydrocyclone starch separator will greatly improve the quality of final syatch. Do you want to know more about the hydrocyclone starch separator? Let's see the features of hydrocyclone starch separator next.

The starch raw material enters at the tangential position of the cyclone tube at a certain pressure, rotates in the tube, and generates a large centrifugal force. The particles or substances with a larger specific gravity move downward and are discharged from the underflow hole. In contrast, the particles with a smaller specific gravity will be discharged.

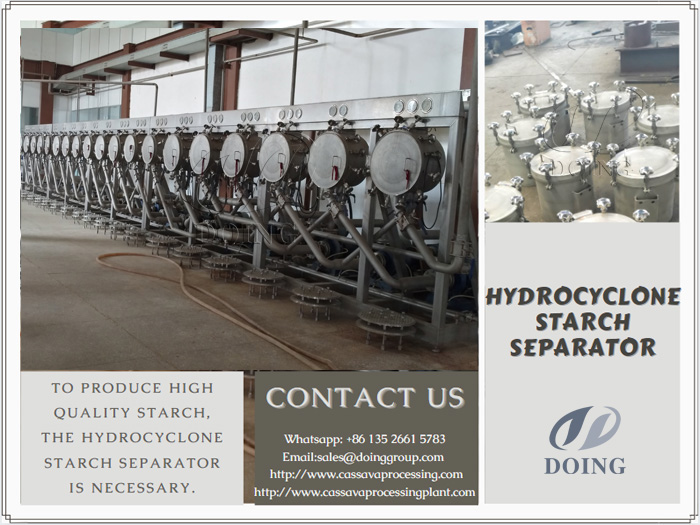

hydrocyclone starch separatorHydrocyclone starch separator

The features of hydrocyclone starch separator:

1. Concentration and washing and refining are carried out simultaneously, high efficient.

2. A total of 18 levels are connected in series to ensure the purity of starch.

3. The connections between the hydrocyclone starch separator and pipes are made of 304 stainless steel. Food grade material can ensure the quality of the final starch;

4. The cylinder body is separated into three chambers of feed, overflow and underflow by a partition board, which are closed by a sealing ring. So the hydrocyclone starch separator can prevent pollution.

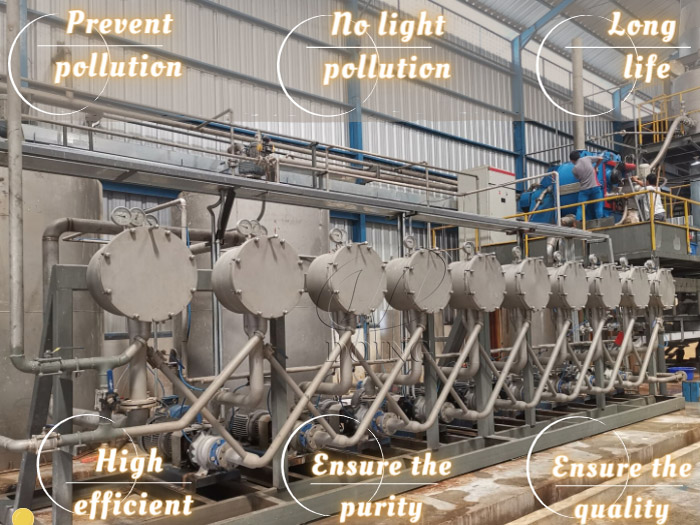

hydrocyclone starch separatorFeatures of hydrocyclone starch separator

5. If the mirror stainless steel design is used in the hydrocyclone starch separator which will reflect light during night production. It is not conducive to the operation in the worker's workshop and causes light pollution; The matte stainless steel used in the hydrocyclone starch separator of Doing Holdings - Henan Jinrui will not have this problem.

6. The hydrocyclone starch separator pipe made from material of strengthened nylon. Long service life.

After the crude starch milk sieved by the centrifuge sieve machine, there are also contain a certain amount of protein. Although these proteins are small, they can aggregate into agglomerates for a long time, which greatly reduces the separation effect. To produce high quality starch, the hydrocyclone starch separator is necessary. Doing Holdings - Henan Jinrui can provide the cassava processing plant, ranging from cassava flour production, cassava starch production and garri processing machine. If you need, welcome to contact us.
