The introduction of automatic garri frying machine

Garri fryer is used for garri frying which is automatic. It is a very popular single machine in Nigeria. The following is the detail introduction of automatic garri frying machine.

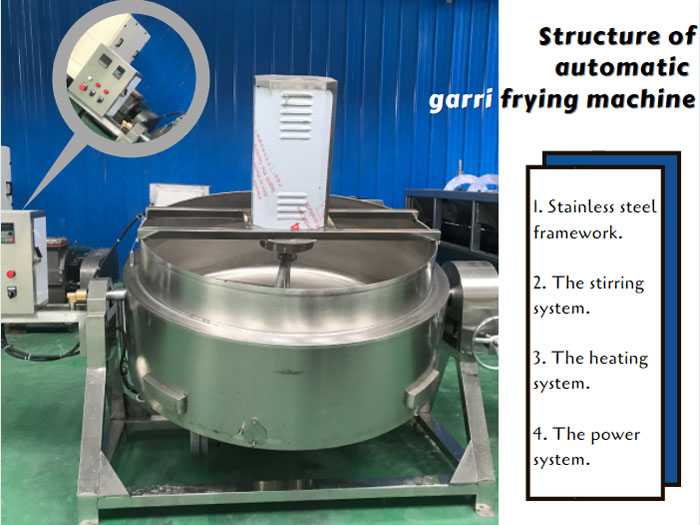

The structure of automatic garri frying machine:

1. Stainless steel framework. The parts that touch the raw material are made of stainless steel and meet the requirements of food safety.

2. The stirring system.

3. The heating system.

4. The power system.

1. The stirring system

It adopts the "Scraping Bottom Type" mixing and stirring. The stirring shaft includes a big one and a small one. The big shaft runs around the center of the automatic garri frying machine and the small shaft rotates by own.The 2 stirring shafts rotates at a different speed rate. It can avoid the material sticking to the pot and make raw materials being fried evenly.

2. The heating system

Cycle oil circuit design can make temperature heat up quickly and save energy. It has a large heating area and high thermal efficiency. Also there is a special observation port for watching the frying process on the fryer which is convenient for monitoring.

3. The power system

Electric control system is adopted, which reduces labor work and improves production efficiency. The automatic garri frying machine adopts variable frequency regulator to regulate the power. The stirring speed and temperature can be regulated by the power system.

Technical parameters:

Model Diameter(mm) Depth(mm) Stirring power(kw) Capacity(kg/h)
DYC-300 1000 390 1.5 40
DYC-400 1000 420 1.5 60
DYC-500 1000 450 1.5 100
DYC-600 1000 450 3 150

The above is the introduction of automatic garri frying machine, which can be adjusted according to the actual situation of each customer. Doing Holdings - Henan Jinrui is a professional cassava processing machine manufacturer. If you need, please contact us.
